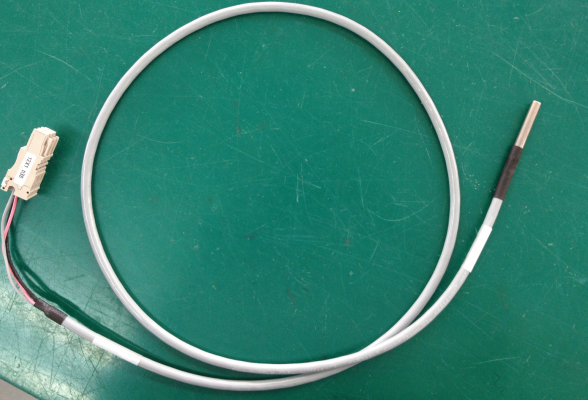

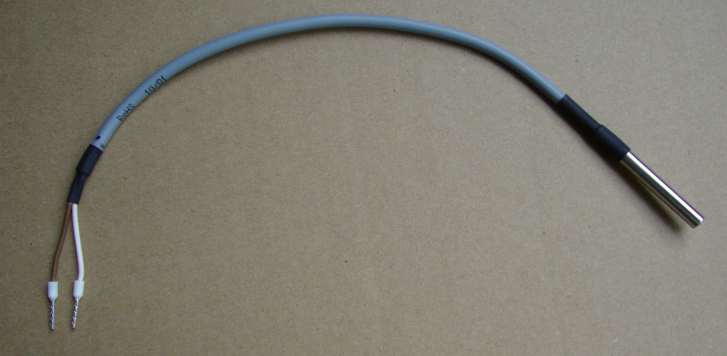

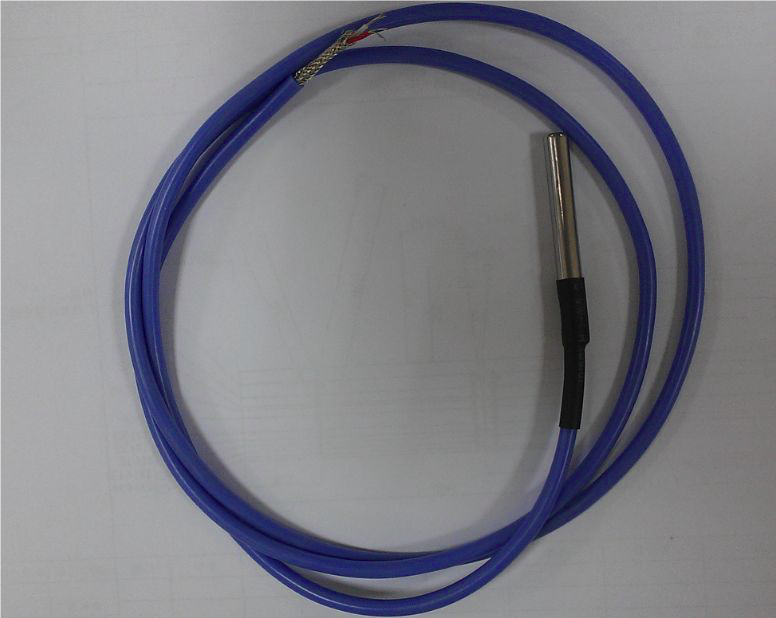

温度传感器-PT100

Sensor type

Pt100

Material

stainless steel

Diameter

approx. 6 mm

Sensor case IP class

IP65

Pt100 element range

-40 to +300°C

Sensor accuracy class

DIN EN 60751 ,ClassB

Sensor wire

PUR/PVC/

PTFE/Silicone rubber

Length

available on request.

Sensor electrical connection

2-wire connection

Sensor operation temperature

-40...+80°C、-40...+200°C (Element and surrounding insulating materials)

T/℃

0

1

2

3

4

5

6

7

8

9

Resistance（Ω）

-40
-30
-20
-10
0

84.27
88.22
92.16
96.09
100.00

83.87
87.83
91.77
95.69
99.61

83.48
87.43
91.37
95.30
99.22

83.08
87.04
90.98
94.91
98.83

82.69
86.64
90.59
94.52
98.44

82.29
86.25
90.19
94.12
98.04

81.89
85.85
89.80
93.73
97.65

81.50
85.46
89.40
93.34
97.26

81.10
85.06
89.01
92.95
96.87

80.70
84.67
88.62
92.55
96.48

0
10
20
30
40

100.00
103.90
107.79
111.67
115.54

100.39
104.29
108.18
112.06
115.93

100.78
104.68
108.57
112.45
116.31

101.17
105.07
108.96
112.83
116.70

101.56
105.46
109.35
113.22
117.08

101.95
105.85
109.73
113.61
117.47

102.34
106.24
110.12
114.00
117.86

102.73
106.63
110.51
114.38
118.24

103.12
107.02
110.90
114.77
118.63

103.51
107.40
111.29
115.15
119.01

50
60
70
80
90

119.40
123.24
127.08
130.90
134.71

119.78
123.63
127.46
131.28
135.09

120.17
124.01
127.84
131.66
135.47

120.55
124.39
128.22
132.04
135.85

120.94
124.78
128.61
132.42
136.23

121.32
125.16
128.99
132.80
136.61

121.71
125.54
129.37
133.18
136.99

122.09
125.93
129.75
133.57
137.37

122.47
126.31
130.13
133.95
137.75

122.86
126.69
130.52
134.33
138.13

100
110
120
130
140

138.51
142.29
146.07
149.83
153.58

138.88
142.67
146.44
150.21
153.96

139.26
143.05
146.82
150.58
154.33

139.64
143.43
147.20
150.96
154.71

140.02
143.80
147.57
151.33
155.08

140.40
144.18
147.95
151.71
155.46

140.78
144.56
148.33
152.08
155.83

141.16
144.94
148.70
152.46
156.20

141.54
145.31
149.08
152.83
156.58

141.91
145.69
149.46
153.21
156.95
